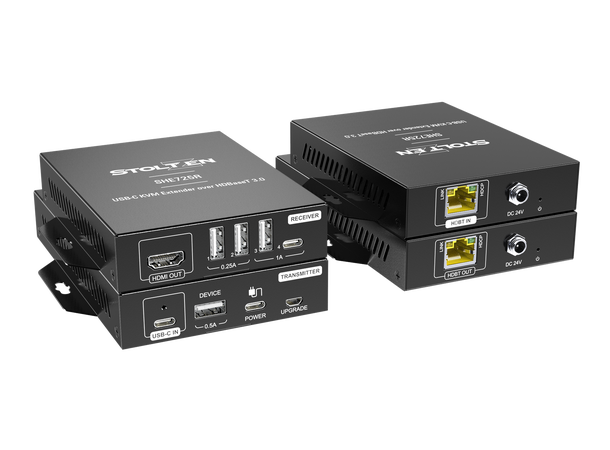

Stoltzen SHE725 HDBaseT™ USB-C Kit w/PD

KVM Extender Kit

The Stoltzen SHE725 HDBaseT™ USB-C Kit  is a cutting-edge KVM extender kit designed to deliver high-quality keyboard, video, and mouse (KVM) signals over long distances. Using advanced HDBaseT 3.0 technology, this solution ensures a reliable, high-speed connection for extended video resolutions up to 4K@60Hz across distances of up to 150 meters via a single CAT6A/7 cable. The kit supports both USB-C and HDMI connections, providing versatile integration with modern devices.

This KVM extender kit is ideal for professional environments such as control rooms, command centers, and studios, where high-definition video and seamless control of systems are required remotely. With two-way IR and RS-232 support for remote control, this solution offers full flexibility for users looking to extend their workstation while maintaining excellent image quality and control over long distances.

Key Specifications:

• Transfer Speed: Up to 18Gbps
• Transfer Distance: Up to 150 meters via CAT6A/7 cable
• Supported Resolutions: Up to 4K@60Hz YUV 4:4:4
• KVM Ports (Transmitter):
  • 1x HDMI
  • 1x USB-C
  • 1x USB Host
  • 1x VGA
  • 2x USB Devices
• KVM Ports (Receiver):
  • 1x HDMI
  • 1x USB-C
  • 1x VGA
  • 2x USB Devices
• Control Signals: Two-way IR, RS-232
• Audio Support: Analog Audio Output (3.5mm)
• Power Supply: 24V DC
• Compatibility: Windows, Mac, Linux, and other OS
