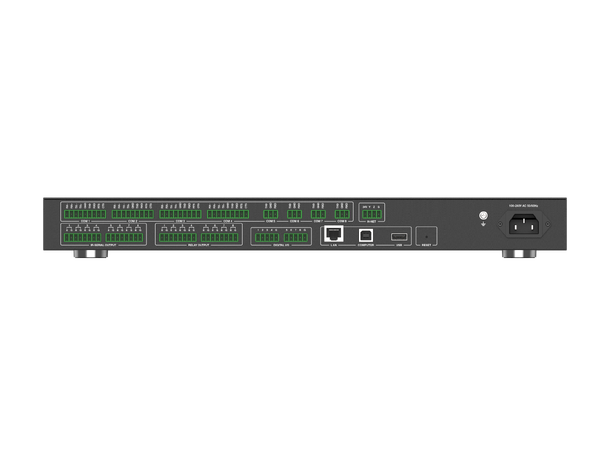

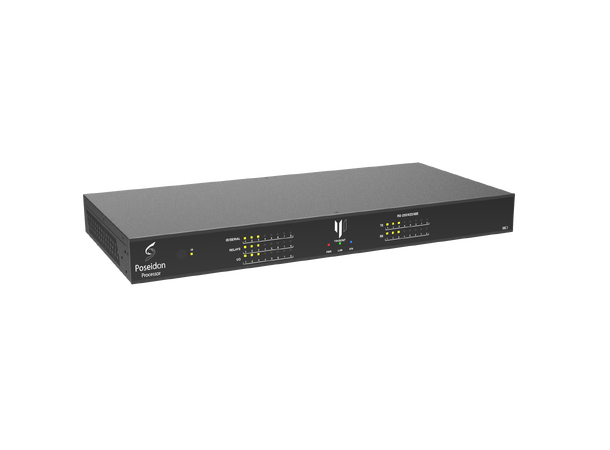

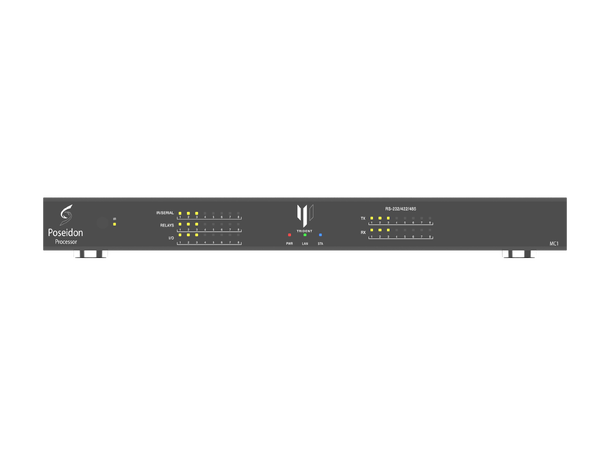

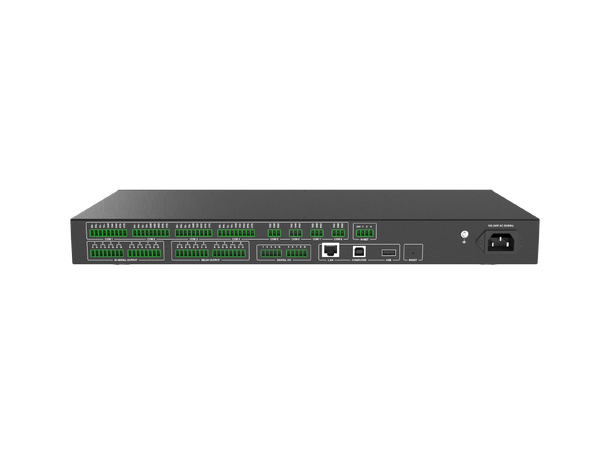

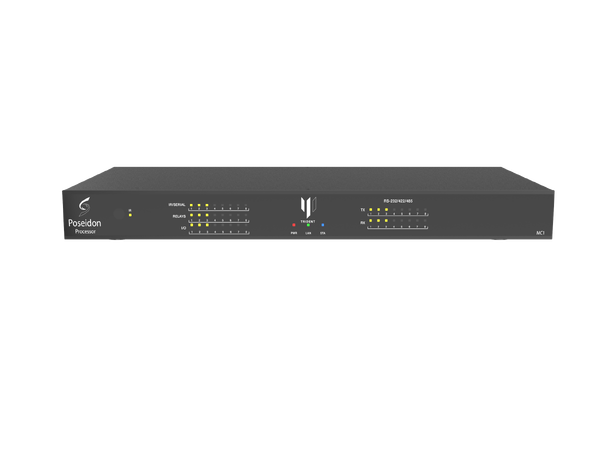

Poseidon MC-1 Control System Solution
The Poseidon MC-1 represents the pinnacle of precision and efficiency in control system technology. Engineered with cutting-edge components and a focus on adaptability, it delivers seamless integration into modern environments, making it the ideal choice for professional setups demanding reliability and performance.
Key Features
- High-Performance Processor: Powered by an i.MX ARM Cortex-A53 1.8GHz, ensuring smooth and efficient operation.
- Comprehensive Connectivity:
- 8 bidirectional RS-232 ports for versatile device control.
- 8 one-way IR/Serial ports for optimized communication.
- Relays and I/O: Equipped with 8 relays and 8 flexible I/O ports, offering robust handling of diverse operational demands.
- IP Device Control: Direct control over IP-based devices for expanded compatibility.
- Compact Design: Designed to fit in a standard 1U rack, ensuring a professional and space-efficient setup.
- Real-Time Clock: Internal clock for precise timekeeping across operations.
Specifications
| Feature | Details |
|---|
| Processor | i.MX ARM Cortex-A53 1.8GHz |
| Operating System | Android OS |
| Bidirectional Ports | 8x RS-232 |
| One-way Ports | 8x IR/Serial |
| Relays | 8x |
| Flex I/O Ports | 8x |
| IP Device Control | Supported |
| Communication Protocols | Industry Standard |
| Clock | Internal Real-Time |
| Size | Standard 1U rack |
