Teltonika TRB255 INDUSTRIAL M2M GATEWAY NB-IOT - 4G LTE Teltonika TRB255 INDUSTRIAL M2M GATEWAY NB-IOT - 4G LTE Teltonika TRB255 INDUSTRIAL M2M GATEWAY NB-IOT - 4G LTE Teltonika TRB255 INDUSTRIAL M2M GATEWAY NB-IOT - 4G LTE Teltonika TRB255 INDUSTRIAL M2M GATEWAY NB-IOT - 4G LTE

Teltonika TRB255

INDUSTRIAL M2M GATEWAY NB-IOT - 4G LTE

Varenr: 126529
Alt. varenr: TRB255000000
BeskrivelseEkstern InfoTeknisk infoAlternativer
Beskrivelse

TRB255

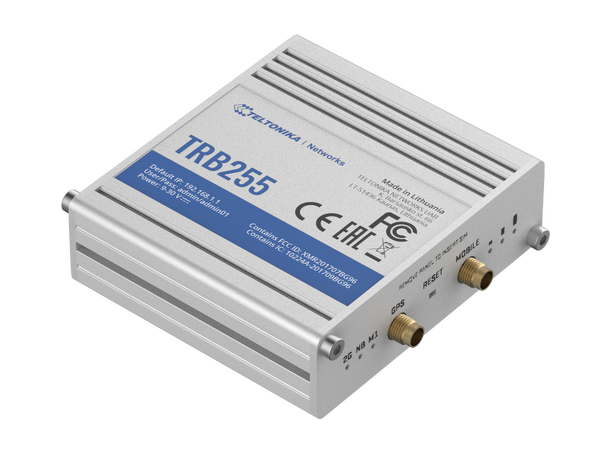

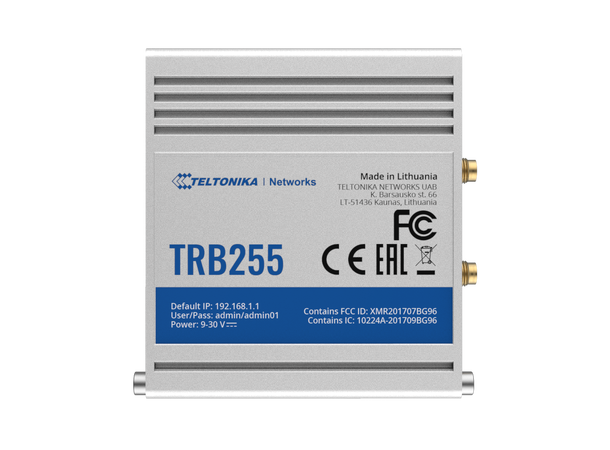

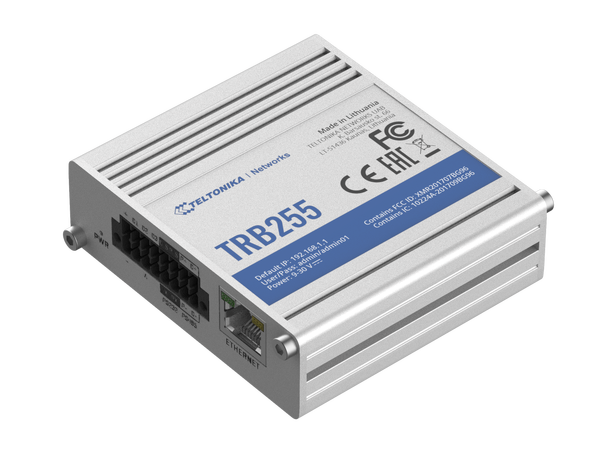

INDUSTRIAL M2M GATEWAY TRB255

TRB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485 & Ethernet interfaces. This industrial LTE Cat M1 & NB-IoT gateway is backward compatible to EGPRS (2G) networks. It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options. TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more. This product is compatible with the Teltonika Networks Remote Management System (RMS).



PACKAGE CONTAINS

  • Gateway TRB255
  • 9 W PSU
  • 1 x Mobile antenna (swivel, SMA male)
  • 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
  • 16 pin terminal block
  • 1 x hex key
  • Ethernet cable (1.5 m)
  • QSG (Quick start guide)
  • RMS Flyer
  • Packaging box



HARDWARE

Mobile – 4G/LTE (Cat M1), NB-IoT, 2G

CPU - Qualcomm QCA9531, MIPS 24kc, 650 MHz

Storage - 16 MB Flash

Memory - 64 MB RAM

Powering Option - 16-pin terminal, 9-30 VDC

SIM – 2 x Internal SIM holders (2FF)

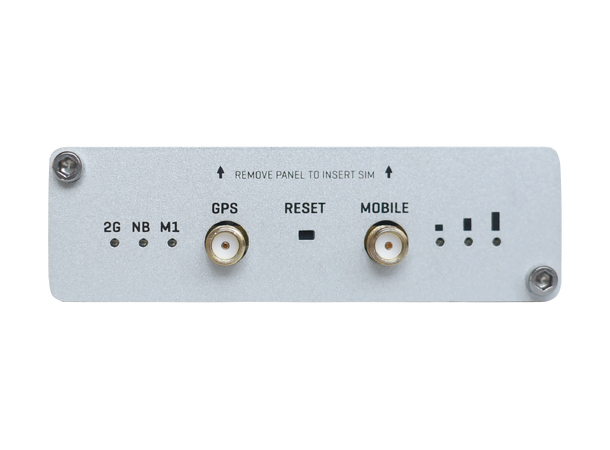

Antenna connectors – 1 x SMA for mobile, 1 x SMA for GPS

thernet - 1 x RJ45 port, 10/100 Mbps

GNSS – GPS, GLONASS, BeiDou, Galileo, QZSS

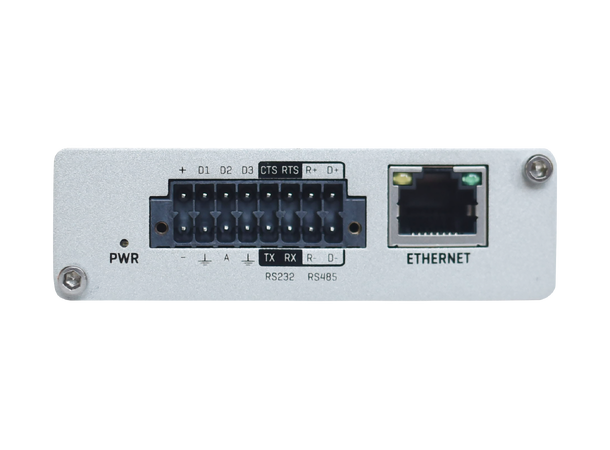

Inputs/Outputs - On 16-pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input

Serial - 1 x RS232, 1 x RS485

Status LEDs - 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power

Operating temperature - -40 °C to 75 °C

Housing - Aluminum housing with DIN rail mounting option

Dimensions - 83 x 25 x 74.2 mm

Weight – 165 g



SOFTWARE

Operating system - RutOS (OpenWrt based Linux OS

Mobile features - Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits

Network - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

Monitoring and management - WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS

Connection monitoring - Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection

Cloud solutions - RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Serial - Console, Over IP, Modem, NTRIP, Modbus

Modbus - TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT

GNSS – NMEA forwarding, AVL, Geofencing

Cloud solutions – RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Administration - Multi user, Configuration profiles, Diagnostics, logs, Configuration backup

NTP - NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
