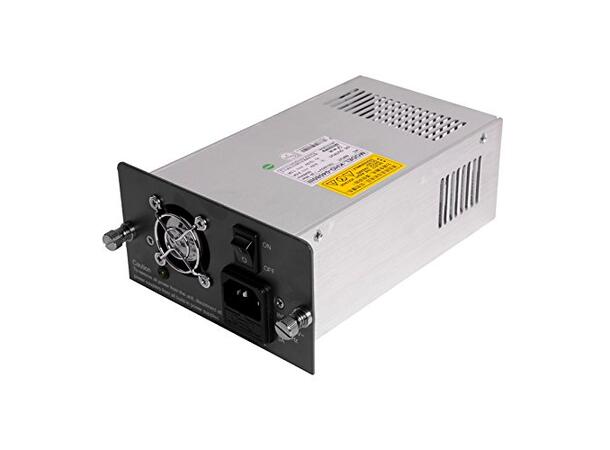

TP-LINK MCRP100
Redundant Power for MC1400
The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.
- Up to 102 watts output power
- Output over-voltage/short circuit/over-current protection
Specifications
| HARDWARE FEATURES |
| Fan Quantity |
1 |
|
|
| Redundant
Power Supply |
| AC Power Input |
100-240V~ 50/60Hz 3A |
| DC Power Output |
9.5V/9.5A |
| Dimensions |
210*130*70 mm |
| Environment |
Operating Temperature: 0~60 degrees celsius |
|
Storage Temperature: -35~85 degrees celsius |
|
Operating Humidity: 20%~90%RH non-condensing |
|
Storage Humidity: 10%~95%RH non-condensing |
