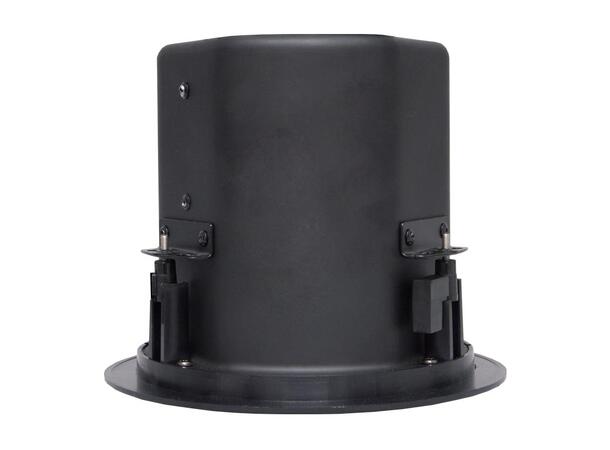

Work Innfellingshøyttaler C PRO 4

4" 3/4" 20W@ 8Ohm 90-20K 20/10/5W 100V

Varenr: 129799
Alt. varenr: 82CPR004
BeskrivelseEkstern InfoTeknisk info
Beskrivelse




Ceiling speaker
 On one hand, it can be painted, so users can customize its colour for a perfect integration with the space. On the other hand, the grille can be easily attached and detached thanks to its fast mounting installation system through magnets. The grille cover almost the total surface of the loudspeaker, increasing its capacity to fit and making it a discrete and stylish solution.Once installed, it is possible to swivel the tweeter to control the directionality in order to enhance the audio experience. PURE PRO Series is composed of three models with different loudspeaker diameters and power outputs, which make them suitable for different requirements. Contractors can rely on a powerful solution, easy to install and integrate, for their low impedance and line voltage projects.

Features
Rotatable tweeter.
Grille with magnets.
Low impedance and 70/100 V line.
Paintable grid cover.

Type Passive. 2 ways.
Low Impedance Power 20 W @ 8 Ohm
L100V Power 2.5 W / 25 W / 10 W / 20 W
L70V Power 1.25W / 2.5W / 5W / 10W / 20W
LF Transducer Woofer 4"
HF Transducer Tweeter 3/4"
Frequency Range 90 Hz - 20 KHz
Coverage 90º x 50º
Sensitivity 87 dB
Max SPL 101 dB
Mounting diameter 180 mm
Mounting depth 160 mm
Fixation 3 rotating pivots
Material Enclosure: ABS plastic; Grille: metal
Colour White (RAL9016)
Dimensions Ø204 x 160 mm
Weight 2,1 Kg




Ekstern Info
Teknisk info

Produktinformasjon

Effekt 20 watt
Farge Hvit
