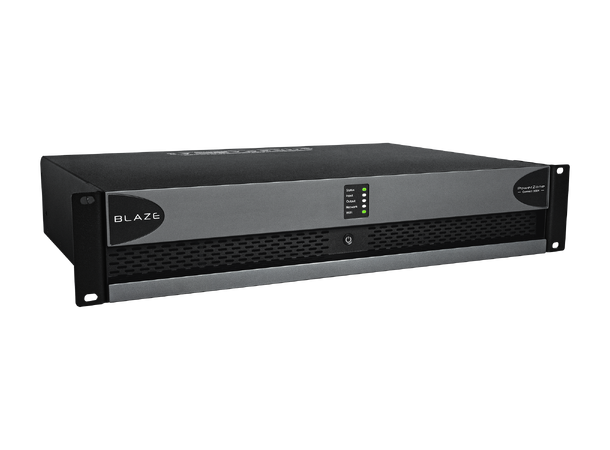

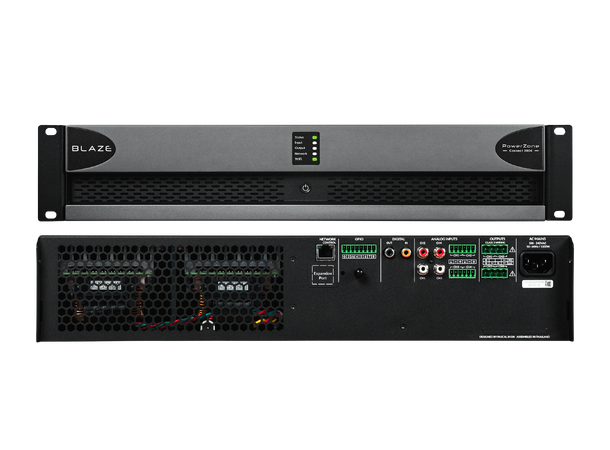

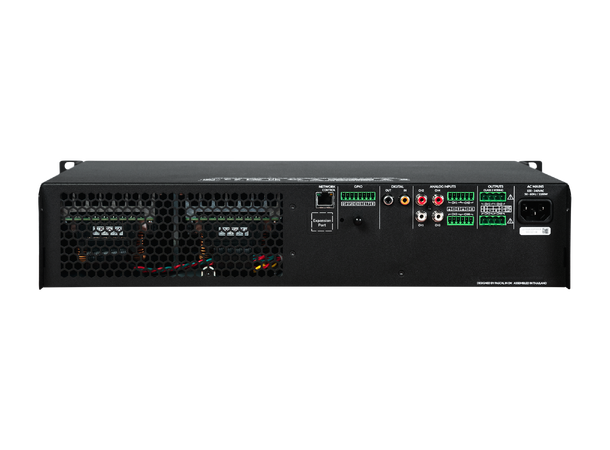

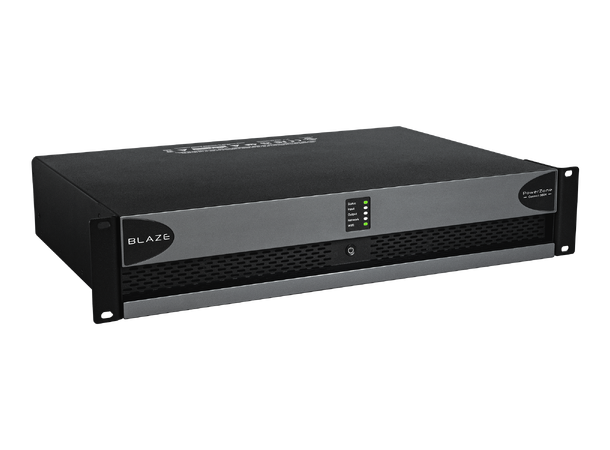

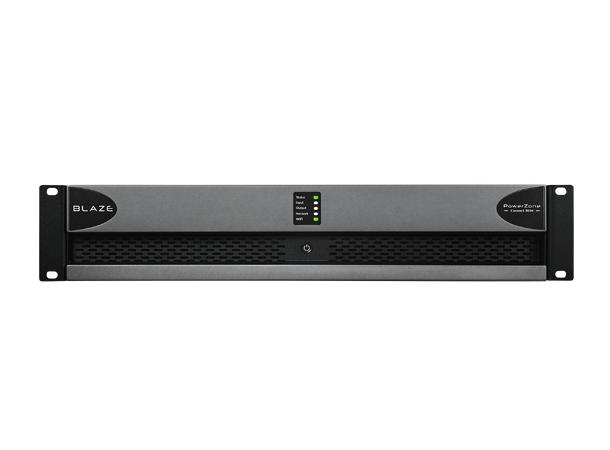

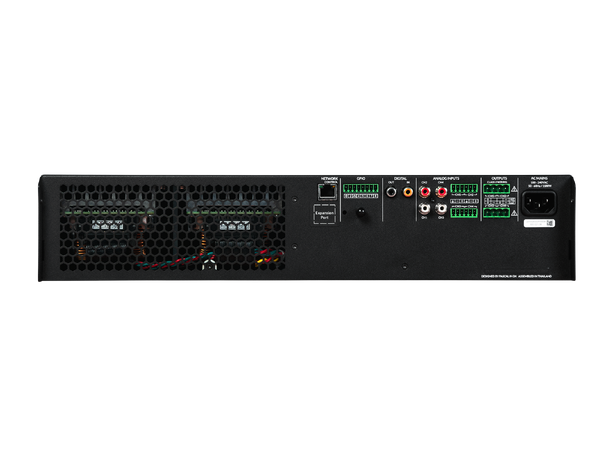

Blaze Audio PowerZone Connect 3004 EU
4x750W@2-4 Ohm | 4x400W@8 Ohm | 2x1500W@100V
The PowerZone Connect series—models 1002, 1502, 2004, and 3004—features robust DSP amplifiers designed to deliver flexible and reliable power output, with total system power ratings of 1000W, 1500W, 2000W, and 3000W in a compact 2U rack format.

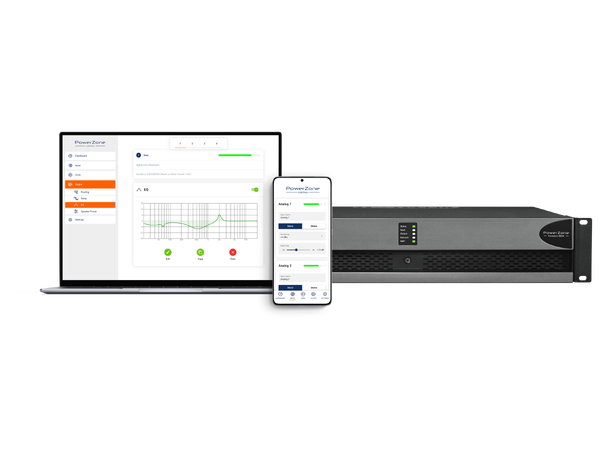

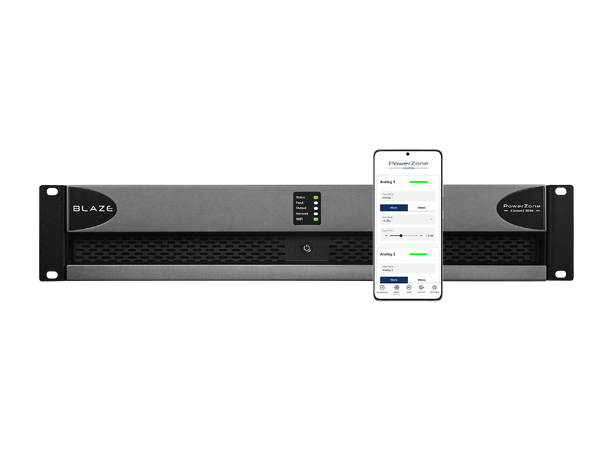

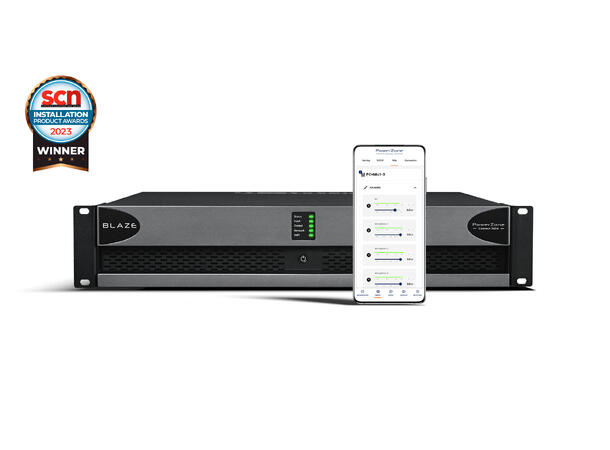

Setup can be performed either wired or wirelessly, providing access to the PowerZone Control web app for straightforward system and audio configuration. Users can easily manage sound zones, adjust inputs and outputs, perform firmware updates, import speaker presets, and access professional EQ settings. Configuration is quick, taking only a few minutes, and can even be done from a smartphone's browser.
With the ability to route any input to any output channel, creating sound zones is simple and efficient. The PowerZone Connect 3004 stands out as a dependable DSP amplifier, powered by Pascal UMAC™ Class-D technology, making it an ideal choice for modern audio environments.
| Total
System Power |
3000W |
| Channels |
4 x lo-Z / 2 x Hi-Z |
| Output Power @ 2 Ohm |
4 x 750 W (SE)* |
| Output Power @ 4 Ohm |
4 x 750 W (SE) or 2 x 1500 W (BTL)** |
| Output Power @ 8 Ohm |
4 x 400 W (SE) or 2 x 1500 W (BTL) |
| Output Power @ 70V |
2 x 1200 W (BTL) |
| Output Power @ 100V |
2 x 1500 W (BTL) |
*SE – conventional, single ended output mode
**BTL – bridge-tied load output mode
