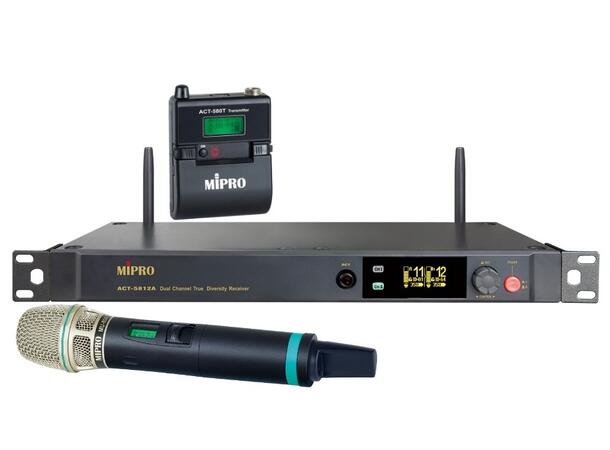

ACT-5812

• The ACT-5812A receiver has antenna connectors on the rear panel for connecting the external antenna system.
• MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
• Stable digital modulation circuitry. All frequencies are located in one frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• ACT-5812A equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• Effectively avoids RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
• Presets Group A and B. There are 12 interference-free channels in Group A and total of 24 interference-free channels in Group B1 & B2.
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• Pairs with ACT-580H handheld and ACT-580T bodypack transmitter.
• All are designed and made in Taiwan to ensure high quality and value.

ACT-580H

• Aesthetically designed in special fog black color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.
• The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
• The patented power switch module integrates an LCD for convenience to operate.
• The patented battery compartment can be inserted with two AA-type batteries or one Li-ion rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
• A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
• Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.

ACT-580T

• Newly designed compact and lightweight housing for easy wearing.
• The panel integrates a power switch and a backlit LCD for easy operation and clear view of all operating information.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• The high dynamic range audio input prevents saturation distortion and matches up low and high input impedance.
• Mute button and remote-control jack allow quick setting of MUTE function.
• The patented battery compartment can be inserted with two AA-type batteries or one Li-ion rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
• A belt clip for easy wearing.

Presets Group A and B. Group A has less interference. Group B is
recommended when more channels or shorter latency is required.
Group A and B can’t operate at the same time.

Specifications

Channel Quad

Chassis EIA Standard 1U metal case

Antenna Detachable, rear panel

Display Graphic OLED

Frequency Range ISM 5.8 GHz (5,725~5,850 MHz)

Preset Channels Presets 12 channels of interference-free operation in Group A and 24 channels of
interference-free operation in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to
be set for each channel to prevent the same channel interfered on the same occasion.

Receiving Mode Dual-tuner true diversity receiving. MIPRO’s ACT Sync channel set-up.

Sample Rate 24-bit / 48 kHz

Frequency Response 18 Hz ~ 23 kHz

Latency < 1.5 ms (Group B)

Dynamic Range > 120 dBA

Output Connectors Balanced XLR & Unbalanced Ø 6.3 mm, -10 ~ +20 dB adjustable range.

Power Supply External 100~240V AC switching power supply

Dimensions 420 × 44 × 162 mm (W×H×D)

Weight Approx. 1.6 kg

Note: Refer to the actual product in the event of product discrepancy
