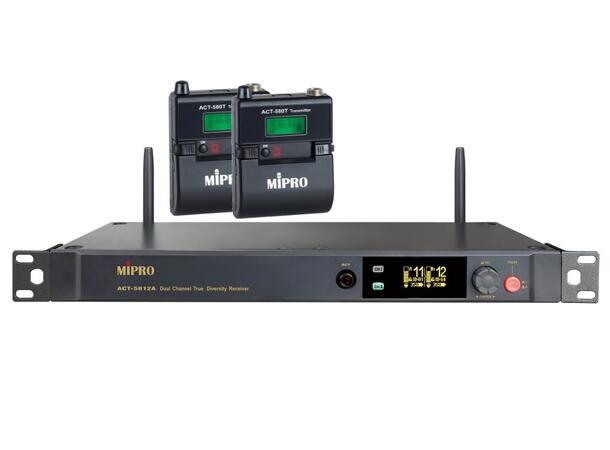

Mipro ACT-5812A/ACT-580T x 2

Trådløst mikrofonsett med dual lommesender - lade eller standard AA

Enkel 19" digital mikrofon mottager. ACT-58 serien kjennetegnes med lav forsinkelse (1.5ms) og unik båndbredde (18Hz-23kHz).  Mipro tar med denne serien digitale trådløse systemer et stort steg videre.

Batteriløsning

Ny og patentert batteriløsning gir deg full fleksibilitet, 2 x AA batterier eller 1 x oppladbart litium batteri (inkl).  Lades via USB C (med litium batteri installert)

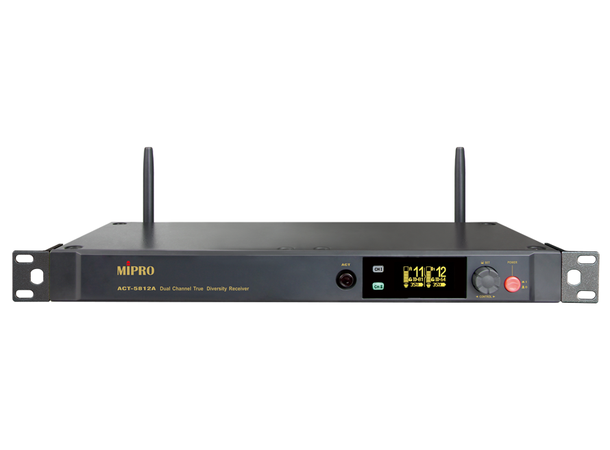

Model ACT-5812A

• The receiver in full-rack metal chassis has antenna connectors on the rear panel for connecting the external antenna system. The receiver in half-rack metal chassis has a built-in high efficiency antenna on the front panel.
• MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
• Stable digital modulation circuitry. All frequencies are located in one frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• ACT-5814A / 5812A are equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• Effectively avoids RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
• Presets Group A and B. There are 12 interference-free channels in Group A and total of 24 interference-free channels in Group B1 & B2.
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• Pairs with ACT-580H handheld and ACT-580T bodypack transmitter.
• All are designed and made in Taiwan to ensure high quality and value.

Specifications

Name: 5 GHz Digital Dual-Channel Receiver

Channel: Dual

Chassis: EIA standard full-rack (19") metal chassis

Display: Graphic OLED

Frequency Band: ISM 5.8 GHz

Preset: Channels Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.

Receiving Mode: Dual tuner true diversity receiving

Sample Rate: 48 kHz / 24-bit

Frequency Response: 18 Hz – 23 kHz

Latency:  < 1.5 ms (Group B)

Dynamic Range: > 120 dBA

Output Connector: Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range

Antenna: 50 O TNC female connectors provide bias for boosters. TNC connectors for daisy chain

Power Supply: DC 12 – 15 V. External AC 100 – 240 V switching power supply

Dimensions: 420 × 44 × 162 mm (W × H × D)

Weight: Approx. 1.4 kg

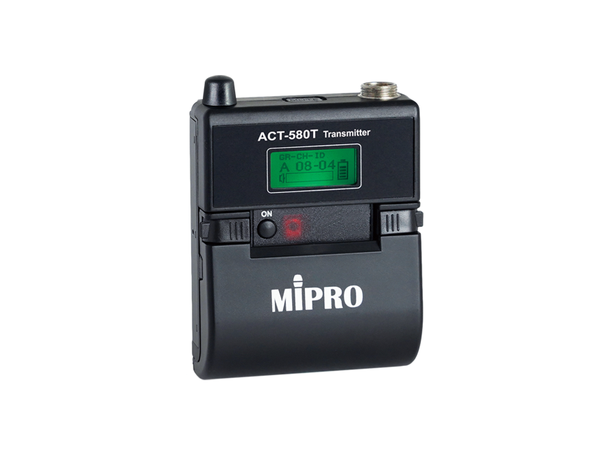

Model ACT-580T

• Newly designed compact and lightweight housing for easy wearing.
• The panel integrates a power switch and a backlit LCD for easy operation and clear view of all operating information.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• The high dynamic range audio input prevents saturation distortion and matches up low and high input impedance.
• Mute button and remote-control jack allow quick setting of MUTE function.

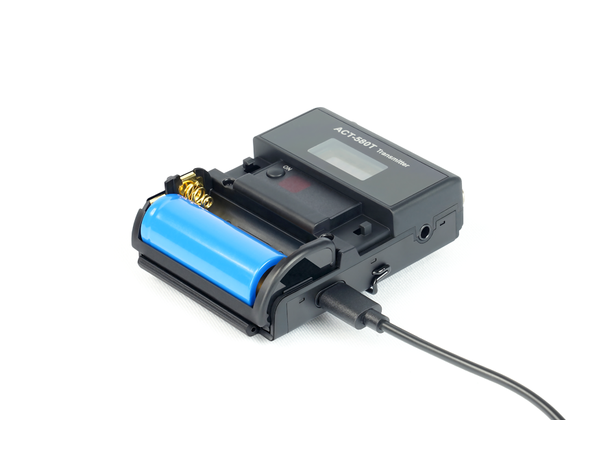

• The patented battery compartment can be inserted with two AA-type batteries or one Li-ion rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
• A belt clip for easy wearing.

Specifications

Name: 5 GHz Digital Bodypack Transmitter

Frequency Band: ISM 5.8 GHz

Display: Backlit LCD

Mic. Capsule Module: Work with all MIPRO’s lavalier and headworn mics

Input Connector: MIPRO 4-Pin Mini XLR

Max. Audio Input: 6.5 dBV

RF Power Output: 20 mW (country dependent)

Battery: One 18500 Li-ion battery or two AA alkaline

Charging: USB Type-C

Dimensions: 63 × 80 × 25 mm (W × H × D)

Weight: Approx. 82 g
